Joint Extruder and Film Blowing Machine with Below-driving and Three layers of Rotating

  • Model: SJ45/65-800/1400/1600
  • Power: 5.5kw/7.5kw/11kw
  • Weight:
  • Describe:

    Applicable in the production of LDPE, LLDPE, HDPE film (three-layers):Three Layer Co-extrusion Blown Film Machine features higher output, good plasticization, low energy consumption and easy operation. It adopts new high-efficiency low-energy extrusion unit, IBC bubble internal cooling system



Product Details

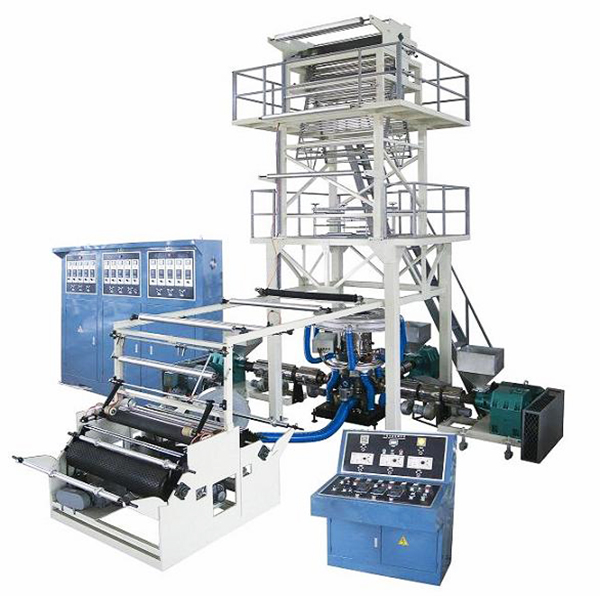

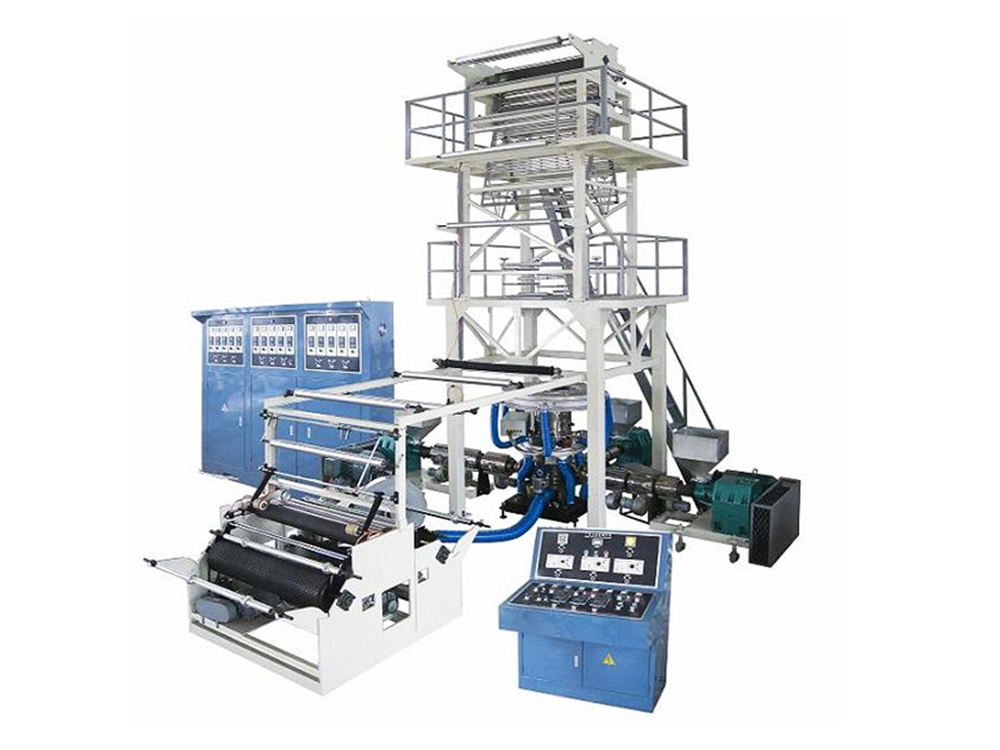

Three Layer Co-extrusion Blown Film Machine features higher output, good plasticization, low energy consumption and easy operation. It adopts new high-efficiency low-energy extrusion unit, IBC bubble internal cooling system, ±360° horizontal traction system, photoelectric automatic rectification device, automatic winding and film tension control, and computer screen automatic control system. Compared with similar equipment, it completely solves the problem of film ruffle and winding size.

The produced film has high transparency, puncture resistance, high toughness, good low temperature hot cut property, good composite fastness and anti-curling property. The film has wide barrier properties, preservation, moisture resistance, frost resistance, oxygen barrier, and oil resistance, and can be widely used in light and heavy packaging, such as various fresh fruits, meat products, pickles, fresh milk, liquid beverages, medical supplies, etc..

Main Technical Parameters

Type

SJ45-1200

SJ65-1400

SJ65-1600

Diameter of screw

Ф45(three-layers)

Ф65(single layer)

Ф50(double layer)

Ф65(three-layers)

Radio of length and diameter

30:01:00

30:01:00

30:01:00

Revolution of screw

20-150

20-150

20-150

Output

90-120kg/h

90-140kg/h

90-140kg/h

Type of mold head

Rotating

Rotating

Rotating

Temperature control

P10 digit display

P10 digit display

P10 digit display

Diameter of mold mouth

f220

f250

f300

Main motor of machine

15kw(3 units)-6

22kw(3 units)-6

30kw(3 units)-6

Power of blower

5.5kw

7.5kw

11kw

Towing motor

1.5kw frequency VVVF

1.5kw frequency VVVF

1.5kw frequency VVVF

Rewind motor

Torque motor



Applications

Three layer co-extrusion blown film machine applicable in the production of LDPE, LLDPE, HDPE film (three-layers).
