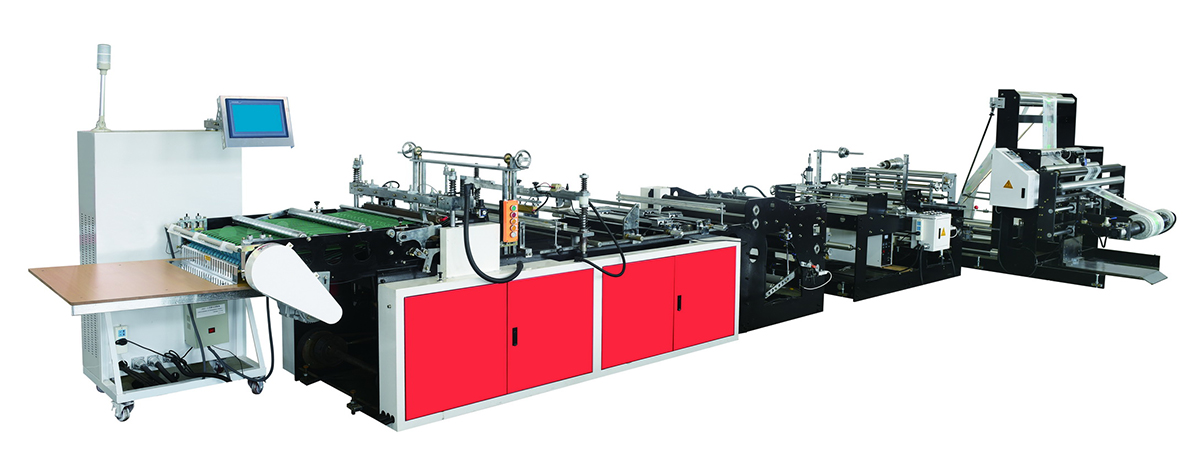

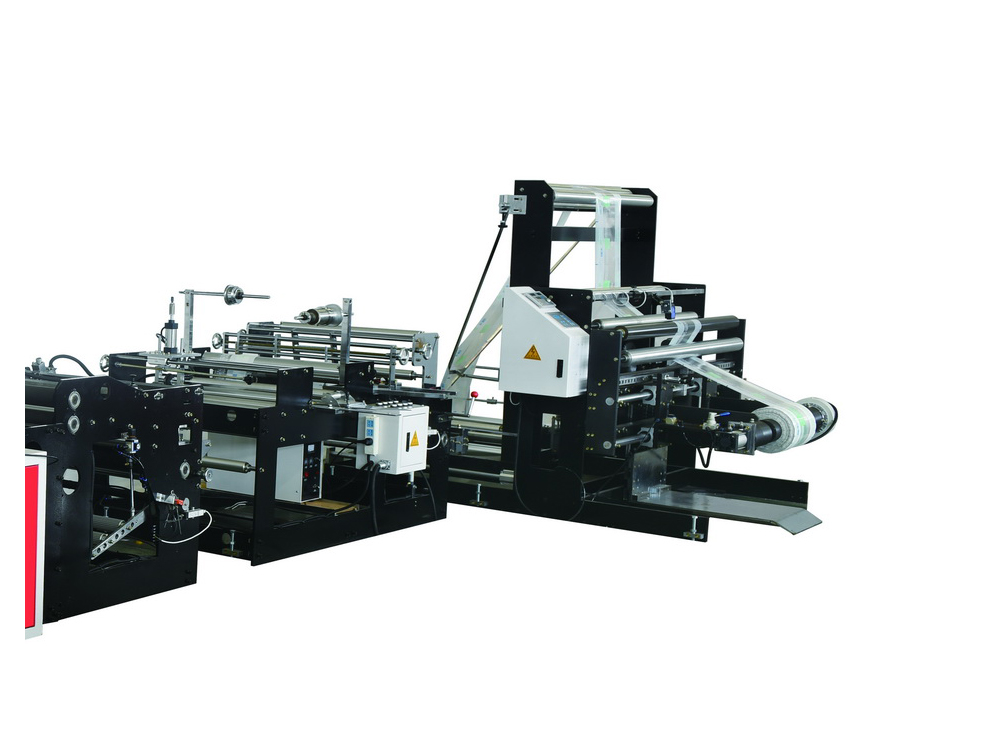

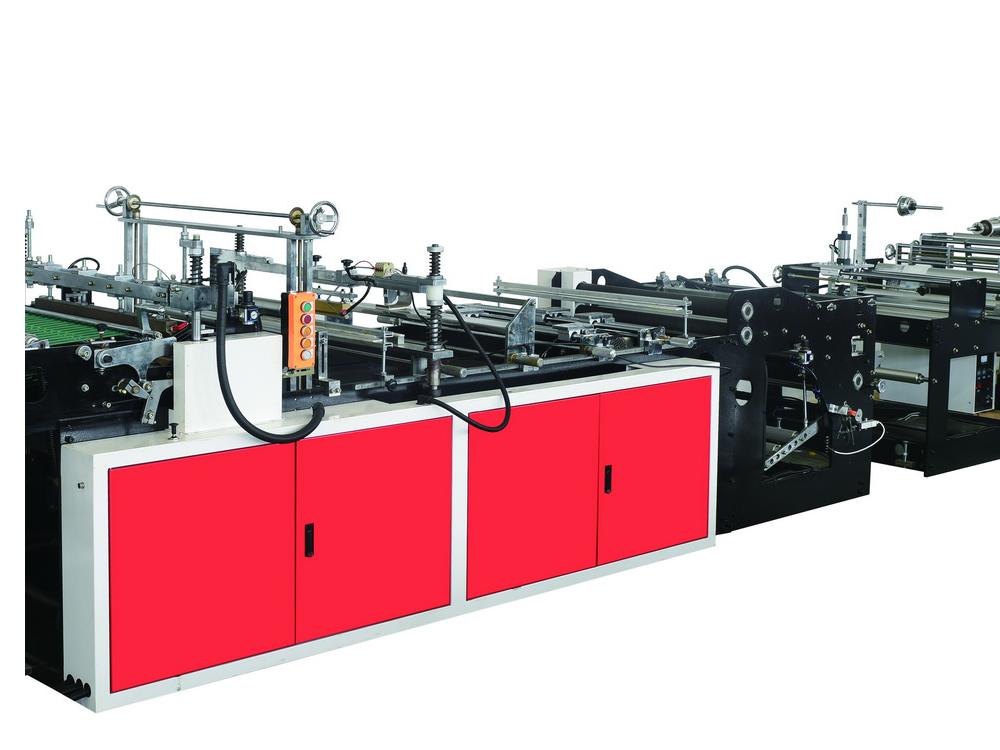

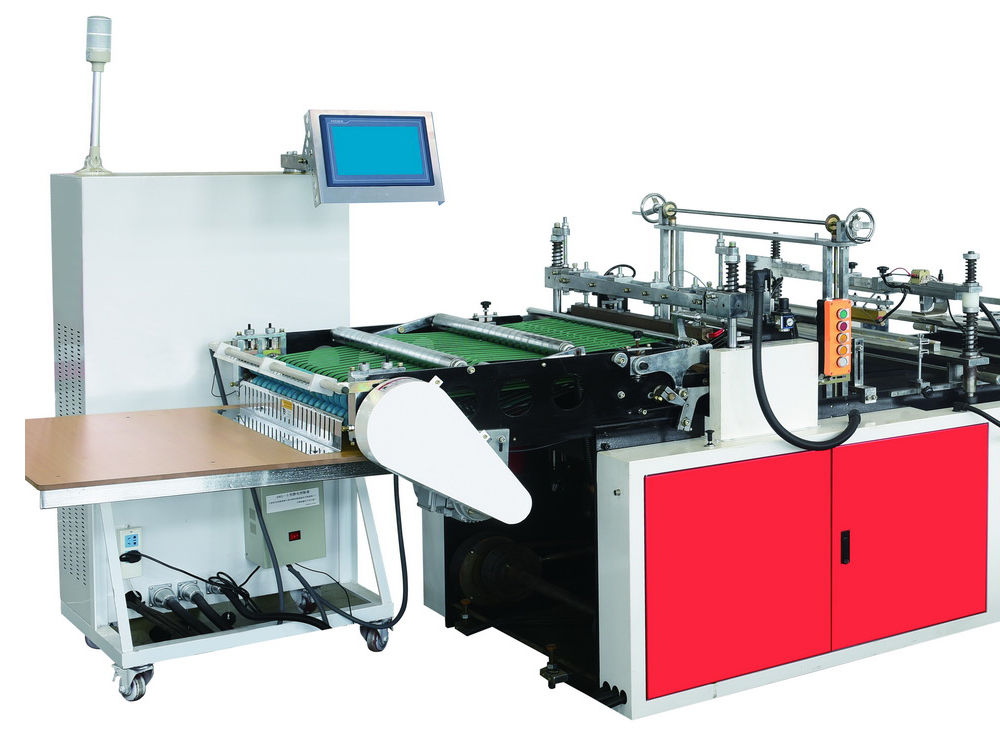

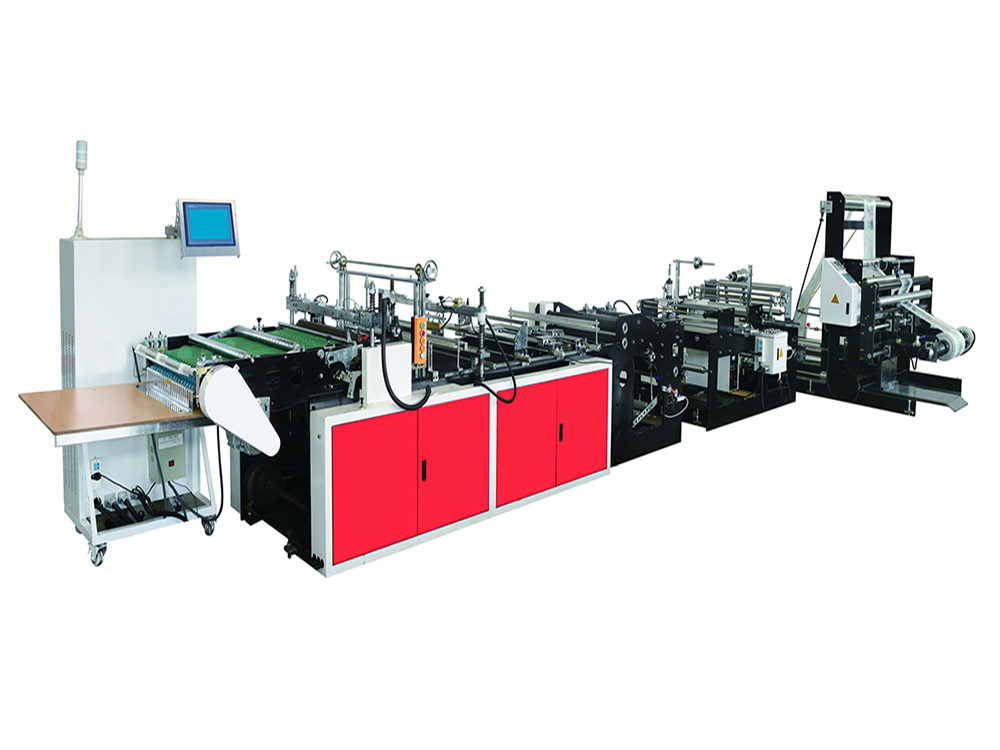

Computer Multifunctional Bag Making Machine

  • Model: GZR-700/900
  • Power: 6.5kw
  • Weight:
  • Describe:

    Mainly apply to the garment bags, jewelry bags, toy bags, Elevators bags, etc.
    1.Voltage:三相四线制 50Hz 380V
    2.Power:6.5kw
    3.Width of unwinder :1300mm
    4.Speed of making bag :20-200只/分
    5.Width of making bag :550mm
    6.Length of making bag :650mm


 Applications



 Mainly apply to the garment bags, jewelry bags, toy bags, Elevators bags, etc.



 Features




 1.Servo motor, stepper motor (optional)
 2.PLC,man-machine interface control
 3.Frequency Control
 4.Automatic tension for unwind
 5.Automatic correction on materials and fold the warm-up
 6.Automatic Punching, Automatically on the tape
 7.Electro-optical tracking fixed-length
 8.Insert pearl film, ultrasonic embossing seal line



 Main Technical Parameters



 1.Voltage:三相四线制 50Hz 380V
 2.Power:6.5kw
 3.Width of unwinder :1300mm
 4.Speed of making bag :20-200只/分
 5.Width of making bag :550mm
 6.Length of making bag :650mm


技术参数

电源

三相四线制 50Hz 380V

功率消耗

6.5kw

放卷最大宽度

1300mm1600mm

制袋速度

20-200/

制袋宽度

800mm

制袋长度

650mm800mm
